The i540 Distance Iron is loaded with innovative features designed to lower your score and improve your game. This advanced iron is equipped with a lighter and shallower face, along with a cleverly designed covered cavity, which allows for the strategic placement of tungsten weighting inside the club. This tungsten weighting is incorporated along the sole of the 4-7 irons, effectively lowering the centre of gravity (CG) for enhanced ball speed and a higher launch angle, ultimately providing increased stopping power on the green.


Highlighting its cutting-edge design, the forged, variable-thickness maraging-steel face is 9% thinner than previous models. This advanced construction provides more flexibility, creating a metal-wood-like bending effect in the transition areas, namely the sole and top. The result is not only faster ball speeds but also a higher maximum height for your shots, ensuring greater distance and accuracy.

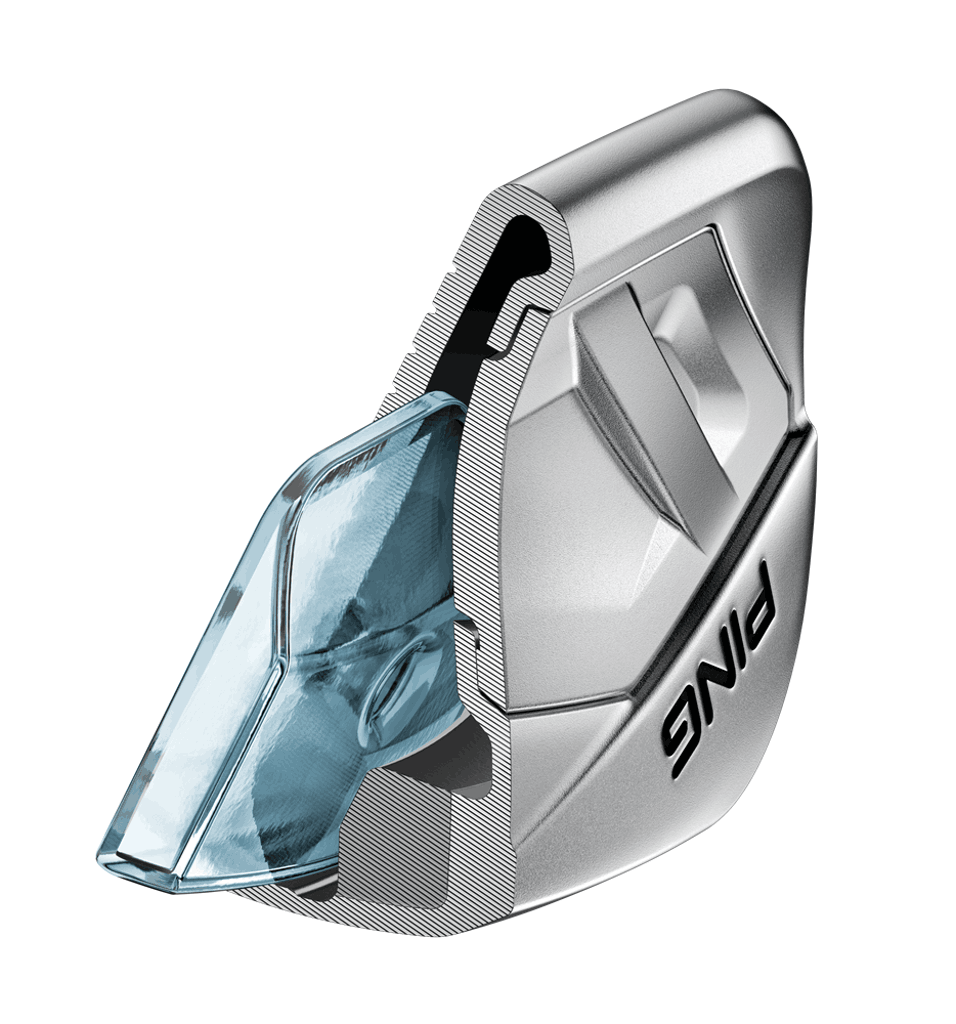

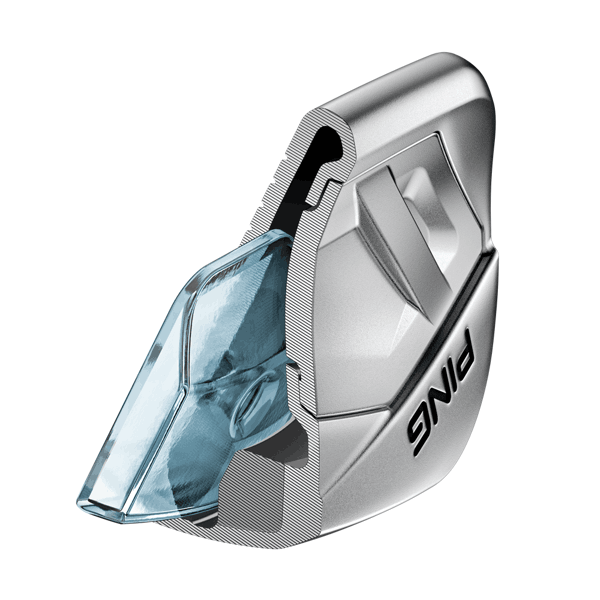

Among the standout features of the i540 iron is the revolutionary inR-Air Technology. This patent-pending advancement from PING incorporates an airbag strategically placed behind the face inside the cavity. This airbag filters frequencies to enhance sound and feel without limiting the club's bending performance. The TPU insert material was meticulously selected for its ability to maintain pressurisation and underwent thorough testing across various conditions, including temperature fluctuations and environmental changes.

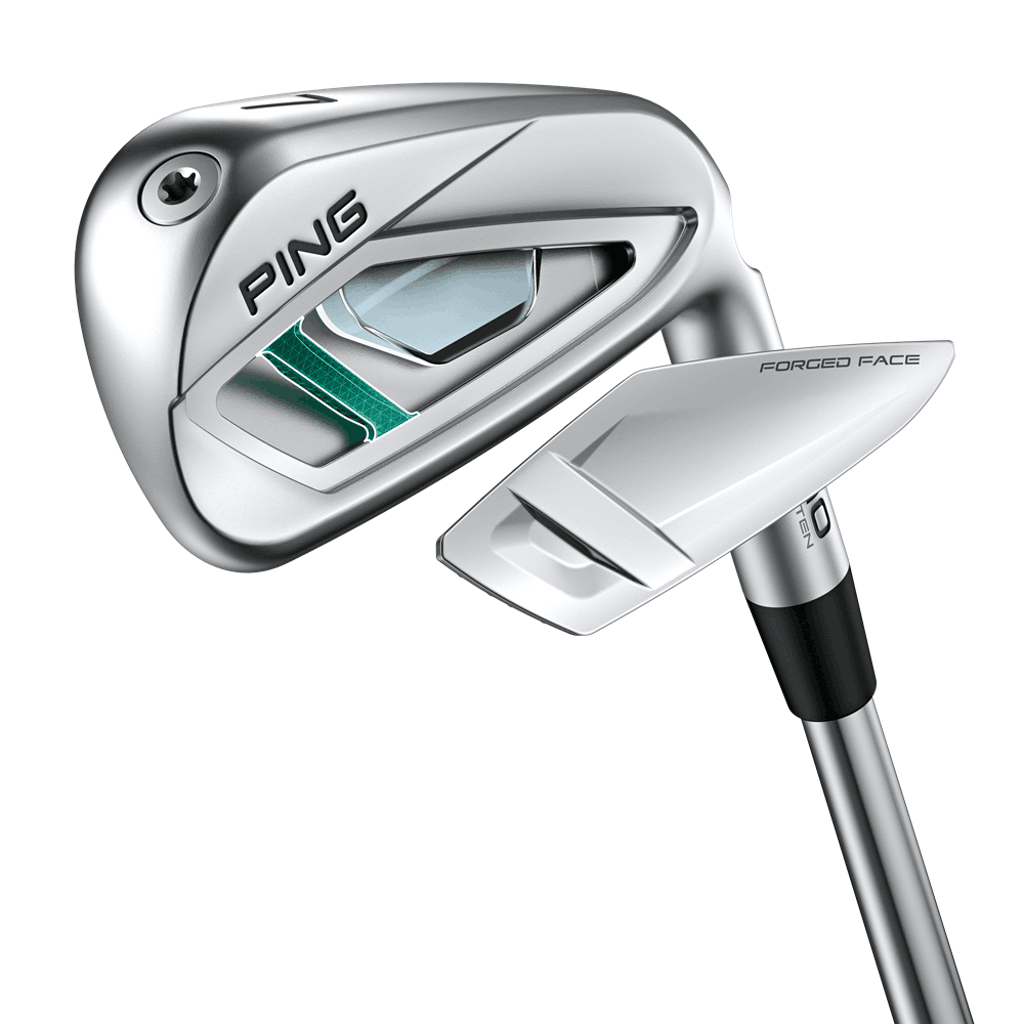

Moreover, the incorporation of the new i-Beam Technology adds structural integrity to the 17-4 stainless steel body. This innovative feature not only bolsters the overall feel of the club but also significantly contributes to improved sound at impact. The metal-wood-like construction of the i540 iron features a beam that stretches across the cavity, reinforcing the structure for a superior user experience.



Key Features:

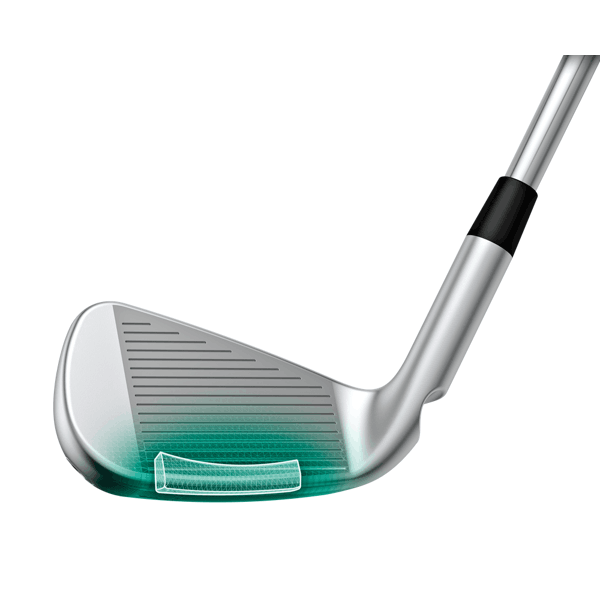

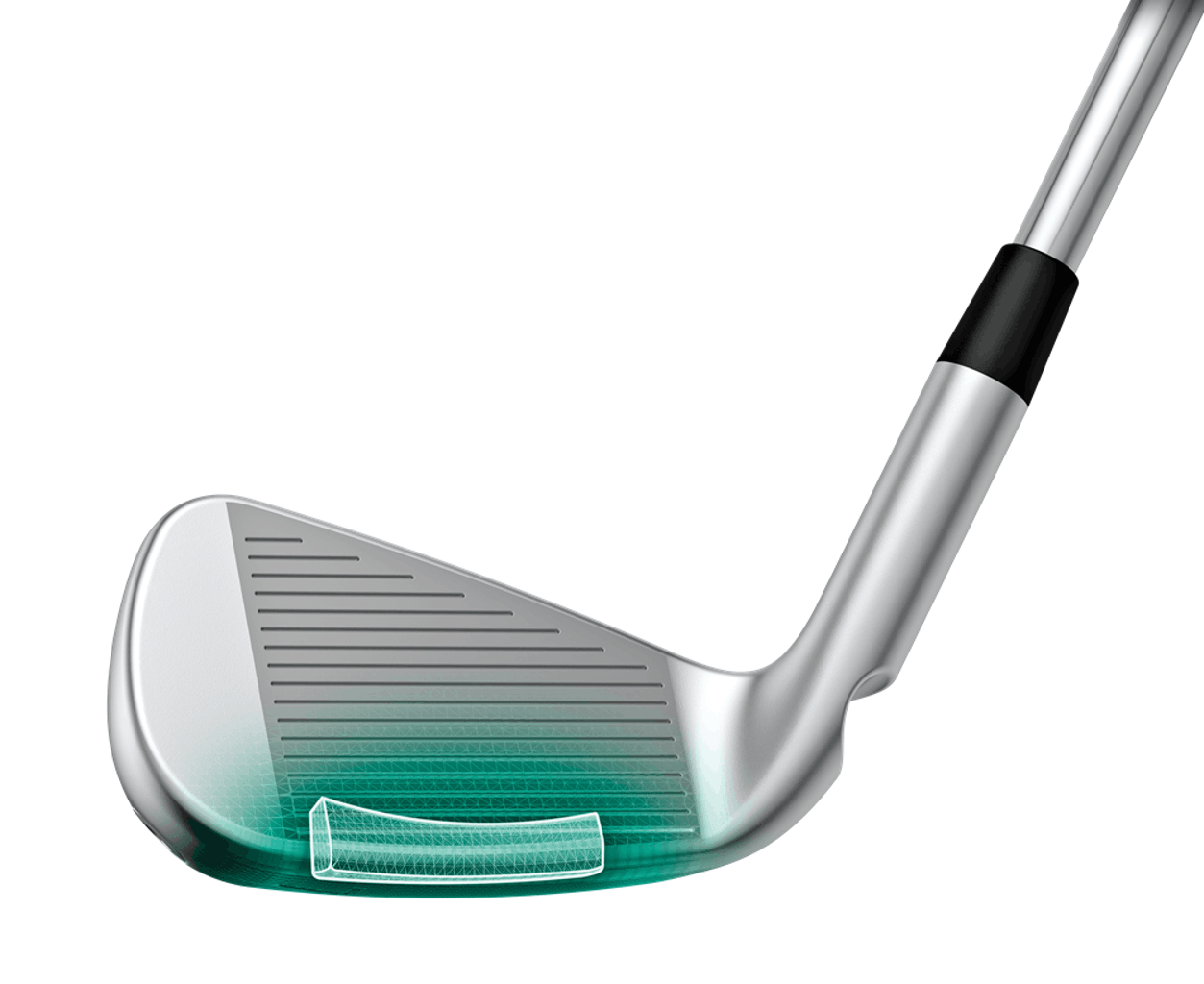

  • Tungsten weighting: Positioned in the 4 to 7 irons, this lowers the CG for increased ball speed, higher launches, and superior stopping power.
  • Forged, variable-thickness maraging-steel face: At 9% thinner, it offers greater flexing for faster ball speeds, increased distance, and higher maximum height.
  • inR-Air Technology: An internal airbag that optimises sound and feel at impact.
  • i-Beam Technology: Provides structural support and enhances sound and feel.


Specifications
Club Length   Loft     Power Spec Loft Retro Spec Loft Lie Angle Offset Bounce Swingweight
4-Iron 39 1/4" 19.0° 18.0° 20.0° 60.5° 0.19" 6.0° D1
5-Iron 38 1/2" 22.0° 21.0° 24.0° 61.0° 0.16" 7.0° D1
6-Iron 37 3/4" 25.5° 24.0° 27.5° 61.5° 0.13" 8.0° D1
7-Iron 37" 29.0° 27.5° 31.0° 62.0° 0.10" 9.0° D1
8-Iron 36 1/2" 33.0° 31.5° 34.5° 62.8° 0.08" 10.5° D1
9-Iron 36" 37.0° 36.0° 38.0° 63.5° 0.06" 12.0° D1.5
PW 35 1/2" 42.0° 41.0° 42.5° 64.1° 0.04" 13.0° D2
UW 35 1/2" 47.0° 46.0° 47.5° 64.1° 0.03" 13.0° D2


Notes
  • These specifications are designed with manufacturing tolerances in mind and may vary.
  • Lie angle is based on the Black Colour Code at standard length.
  • Power Spec Loft is tailored for players aiming to enhance iron distance whilst also decreasing spin for optimal trajectory. This loft configuration is custom designed to deliver a calculated power boost without compromising the integrity of the club.
  • Retro Spec Loft is ideal for those prioritising precision over sheer distance, offering a higher trajectory for effective stopping power. This configuration yields functional distance gaps, making it perfect for a 3-wedge setup or more traditional loft specifications. Note that club bounce angles may vary with non-standard loft specifications.
  • Standard swingweights for graphite-shafted clubs will be lighter by 2 to 3 points, contingent on shaft flex.
  • Achievable swingweights are dependent on the chosen shaft and grip combinations.
  • Available in both left- and right-handed models.
